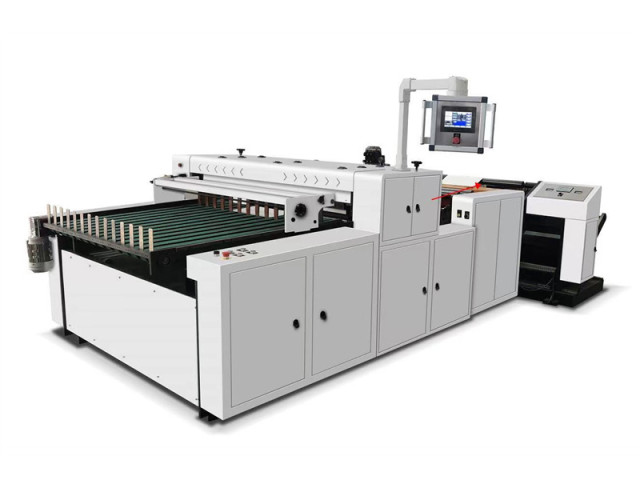

This Machine can producing PET PVC Plastic Film etc materials Roll to Sheet Cross Cutting. it can producing different kinds paper and non woven fabric also, like printed hamburger paper, coating paper or Medical non-woven fabric etc
ProductIntroduction:
This machine suitable for cutting jumbo roll to sheet materials whatever it is paper , plastic film, non woven fabric etc material.
Widely used in paper making, printing and packaging industries area.It has slitting blade function so it can cut multi size sheet size from jumbo roll.
|
Model |
HQJ-1100/HQJ-1400/HQJ-1600(different width model) |
|
Type of cutting |
Cross Cut Knives |
|
Thickness of Paper |
20-500 GSM |
|
Thickness of Film |
Any kinds film or non woven fabric |
|
Max.Unwinding Reels Diameter |
Max 1400mm |
|
Max.Cutting Width |
Max1100mm/1400mm/1600mm(different width model) |
|
Finished Sheet Length |
Min.300-Max.1200 mm |
|
Number of rolls feeding |
1 roll feeding |
|
Cutting accuracy |
±0.2mm |
|
Max.Machinery Speed |
200cuts/min |
|
Max.Cutting Speed |
150Cut/min |
|
Requirement of the Air Pressure |
0.8MPa |
|
Standard Voltage |
AC380V/220Vx50HZ 3PH |
