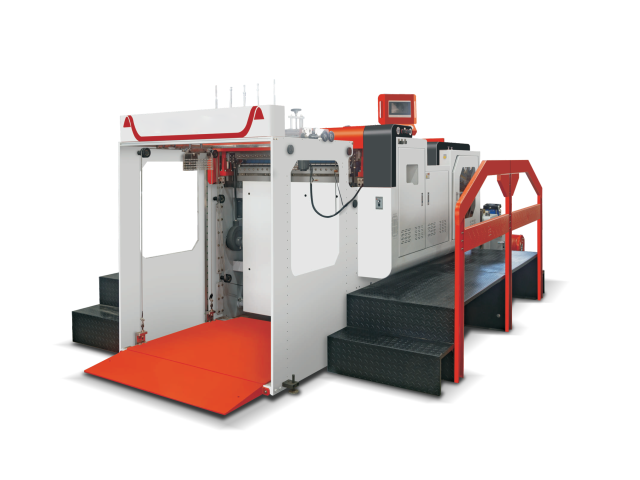

This machine suitable for jumbo roll to sheet cutting ; Machine use Cross Cutting Knives.
The machine are mainly used for paper sheeting in Paper Mill, Printing House and etc
mainly process including: Unwinding—Cutting—Conveying—Collecting.
Suitable for Suitcutting board, kraft paper, Al laminating paper, metalized paper, art paper, duplex and so on, paper thickness can be up to 500gsm
ProductIntroduction:
This machine suitable for cutting jumbo roll to sheet materials,It suitable for Suitcutting board, kraft paper, Al laminating paper, metalized paper, art paper, duplex and so on . it can producing printing materials also. it use Cross Cut knives.
Widely used in paper making, printing and packaging industries area.It has slitting blade function but it cut two line paper sheet only.
|
Model |
ZHQ-1100/ZHQ-1400/ZHQ-1600(different width model) |
|
Type of cutting knives |
Cross Cut |
|
Thickness of paper |
60-500 GSM |
|
Max.Unwinding Reels Diameter |
Max 1400mm |
|
Max.Cutting Width |
Max1100mm/1400mm/1600mm(different width model) |
|
Finished Sheet Length |
Min.350-Max.1200 mm |
|
Number of rolls feeding |
1 roll feeding |
|
Cutting accuracy |
±0.2mm |
|
Max.Machinery Speed |
200cuts/min |
|
Max.CuttingSpeed |
150cut/min |
|
Delivery Pile Height |
1200mm |
|
Requirement of the Air Pressure |
0.8MPa |
|
Standard Voltage |
AC380V/220Vx50HZ 3PH |
