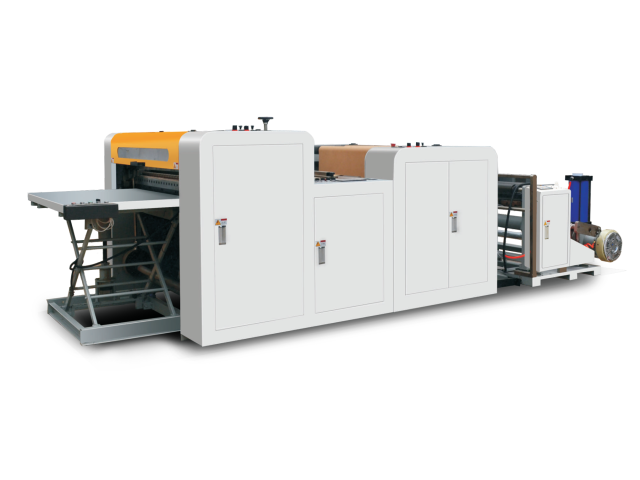

This Machine use for PET PVC Plastic Film etc materials Roll to Sheet Cross Cutting. it can producing thin paper also, like printed hamburger paper, coating paper etc
ProductIntroduction:
This machine suitable for cutting roll materials to sheet materials. suitbale for PET, PVC and other plastic film materials and some thin paper roll materials, including printed hamburger paper, single side coating paper or two side coating paper etc. It suitable for Jumbo Roll material feeding which one roll diameter within 1400mm diameter, because it has pneumatic loading.
Widely used in paper making, printing and packaging industries.It has slitting function so it can cut multi size sheet size from jumbo roll.
|
Model |
HQJ-B-1100mm/HQJ-B-1400mm/HQJ-B-1600 (different width roll model) |
|
Type of cutting |
Cross Cut |
|
Thickness of Paper |
20-450 GSM |
|
Thickness of Film |
Any kinds of film and Thin Paper |
|
Max.Unwinding Reels Diameter |
Max1400mm(Pneumatic Lifting) |
|
Max.Cutting Width |
Max1100mm/1400mm/1600mm(different width model) |
|
Finished Sheet-Length |
Min.30-Max.1200 mm |
|
Number of rolls feeding |
1 roll |
|
Cutting accuracy |
±0.2mm |
|
Max.Machinery Speed |
200cuts/min |
|
Max.Cutting Speed |
150 cut/mins |
|
Requirement of the Air Pressure |
0.8MPa |
|
Standard Voltage |
AC380V/220Vx50HZ3PH |
