This machine suitable for jumbo roll to sheet cutting ; machine use Single Rotary Cutting Knives.
The machine are mainly used for paper sheeting in Paper Mill, Printing House and etc, mainly process including: Unwinding—Cutting—Conveying—Collecting.
Suitable for Suitcutting board, kraft paper, Al laminating paper, metalized paper, art paper, duplex and so on, paper thickness can be up to 550gsm.
ProductIntroduction:

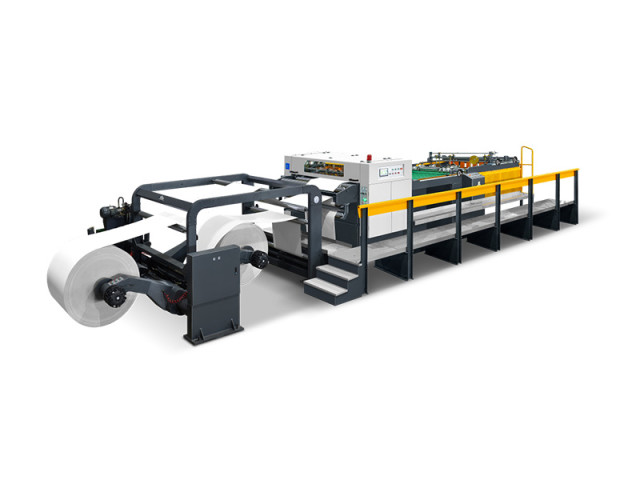

This is Paper Roll Sheet Cutting Machine which one suitable for cutting jumbo roll materials to Paper Sheet,it suitable for many kinds paper roll material such as Suitcutting board, kraft paper, Al laminating paper, metalized paper, art paper, duplex etc and paper thickness can be up to 550gsm.
Machine widely used in paper making, printing and packaging industries area.It suitable for customers who have high output capacity requirement.
|
Model |
S140/S170/S190 Two Roll Feeding(Three different model) |
|
Type of cutting |
Top blade rotary,Bottom blade fixed |
|
Thickness Paper Range |
60-550 GSM |
|
Each Reels Diameter |
Max 1800mm |
|
Max.Cutting Width |
Max 1400mm/1700mm/1900mm (three different model) |
|
Finished Sheet-Length |
Min.450-Max.1650 mm |
|
Numberof rolls feeding |
Two Roll Feeding |
|
Cutting Accuracy |
±0.3mm |
|
Max.Cutting Speed |
350cuts/min |
|
Max.Meter Speed |
300m/min |
|
Delivery Pile Height |
1500mm |
|
Requirement of the Air Pressure |
0.8MPa |
|
Standard Voltage |
AC380V/220Vx50HZ 3PH |
