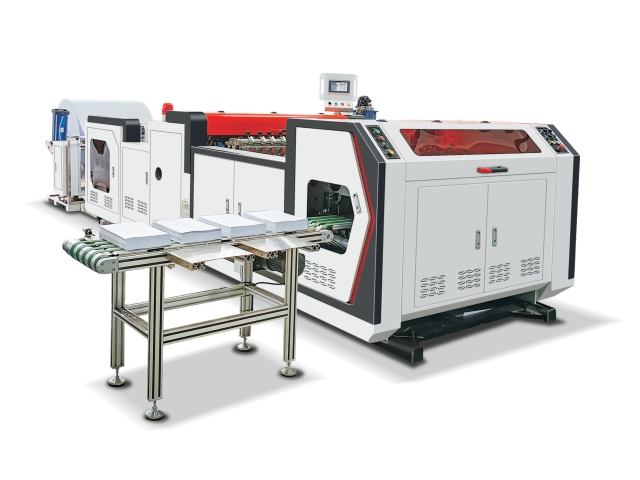

This machine purpose to cutting jumbo paper roll to A4A3 Size Product, Suitable for 60-400gsm paper.
ProductIntroduction:
This machine purpose to cutting jumbo paper roll to A4A3 Size Product,Suitable for paper thinckness range 60-400gsm different kinds paper. Widely used in paper making, printing and packaging industries area.
Machine main suitable for customer who can accept wrapping paper by manual. and Customer each batch quantity request is 100,200,250,500 etc product. each batch quantity counting and setting by computer.
|
Model |
HQJ-1100-A4A3 Size |
|
Type of cutting Knvies |
Cross Cut |
|
Thickness of paper |
60-400 GSM |
|
Max.Unwinding Reels Diameter |
Max1400mm |
|
Max.Cutting Size |
A3A4 Size |
|
Numberof rolls feeding |
1 Roll Feeding |
|
Cutting accuracy |
±0.2mm |
|
Max.Machinery Speed |
200cuts/mins |
|
Max.Cutting Speed |
160cuts/min |
|
Requirement of the Air Pressure |
0.8MPa |
|
Standard Voltage |
AC380V/220Vx50HZ 3PH |
