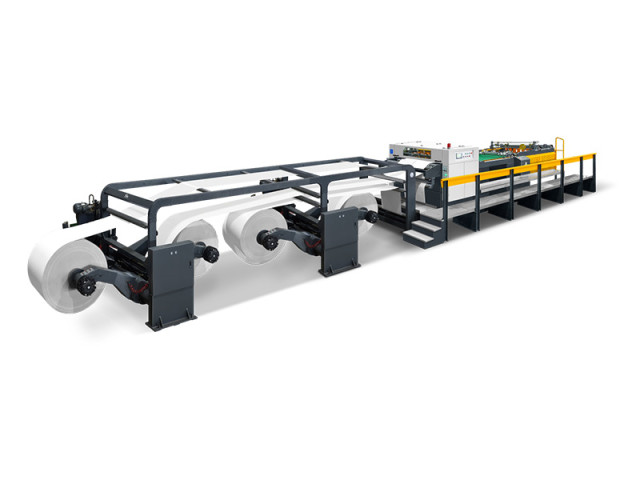

This machine suitable for jumbo roll to sheet cutting ; machine use Two Rotary Cutting Knives.
The machine are mainly used for paper sheeting in Paper Mill, Printing House and etc, mainly process including: Unwinding—Cutting—Conveying—Collecting.
Suitable for Suitcutting board, kraft paper, Al laminating paper, metalized paper, art paper, duplex and so on, paper thickness can be up to 1000gsm.
ProductIntroduction:
This is High Speed Series Paper Roll To Sheet Cutting Machine which one suitable for cutting jumbo roll materials to Paper Sheet,it suitable for Suitcutting board, kraft paper, Al laminating paper, metalized paper, art paper, duplex many kinds paper roll material.and paper thickness can be up to 1000gsm . It's two Rotary Cutting Knives type Machine.
|
Model |
D150/D170/D190 Four Reels Feeding |
|
Type of Cutting |
Twin knife, Top blade and bottom blade rotary cutting |
|
Paper Thickness Range |
150-1000 GSM |
|
Each Reel Stand Load Capacity: |
2000KG(2Tons) |
|
Each Reel Outside Diameter |
Max 1800mm (71") |
|
Max.Cutting Width |
Max 1500/1700/1900mm (66.9") |
|
Cutting Length Range |
Min.400-Max.1700 mm |
|
Num. of Rolls Cutting |
4 rolls |
|
Cutting Accuracy |
±0.15mm |
|
Max. Speed of Cutting |
400cuts/min |
|
Max. Cutting Speed |
300m/min |
|
Delivery Height |
1700mm(incl.pallet) |
|
Voltage |
AC380V/220Vx50HZ 3PH |
